Downflow Air Curtain for Product Protection

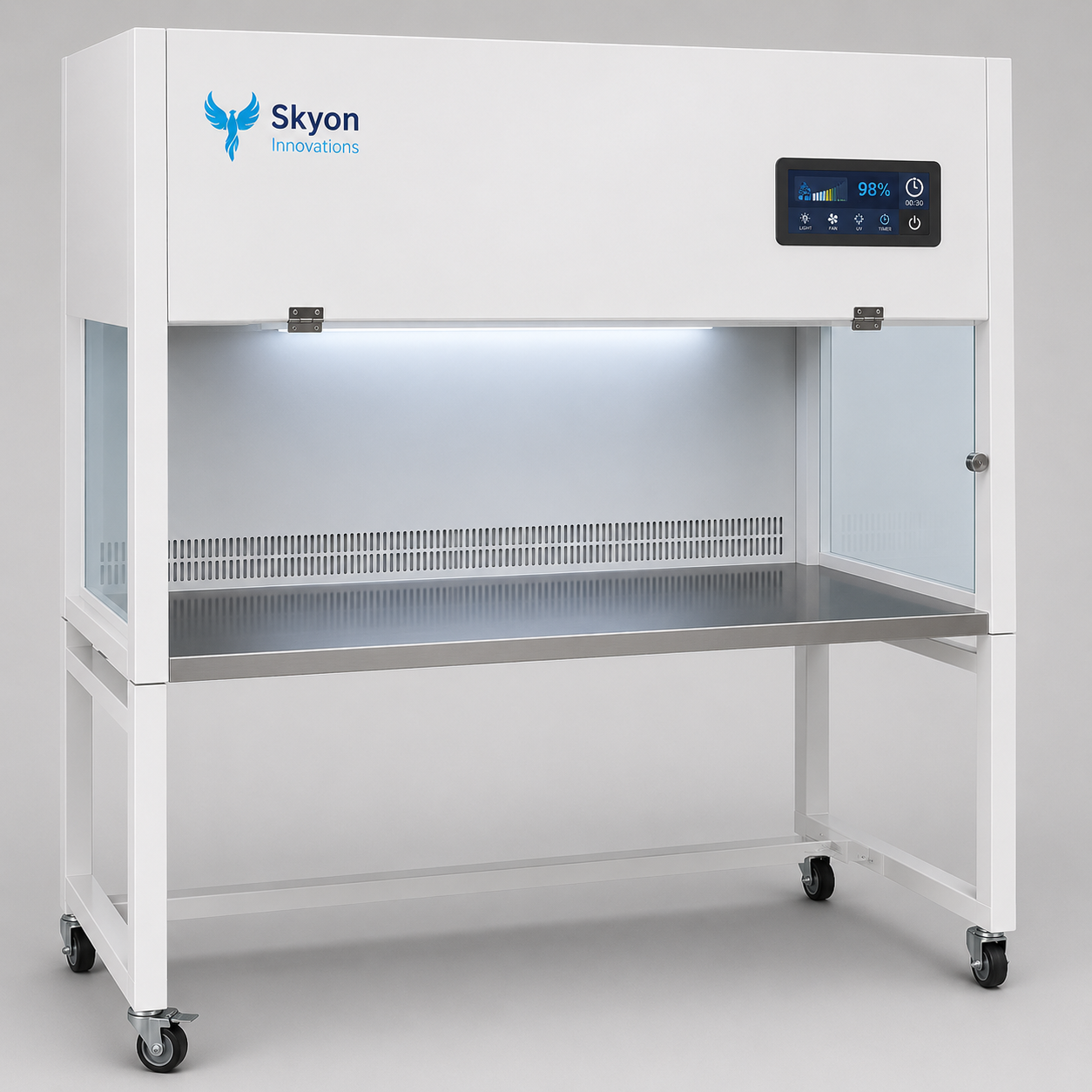

Vertical Laminar Flow Cabinet
Vertical laminar air flow cabinet providing ISO Class 5 clean air for sensitive sample handling and pharmaceutical work.
Built for Long-Term Reliability
Air Classification
ISO Class 5
HEPA Filter Grade
H14 (99.995% @ 0.3 µm)
Product Overview
The Vertical Laminar Flow Cabinet (VLFC) delivers a continuous curtain of ultra-clean air vertically downward across the work surface, creating an ISO Class 5 environment ideal for non-hazardous pharmaceutical compounding, electronic component assembly, and sensitive biological sample handling. Air is drawn through a plenum chamber housing a pre-filter and an H14 HEPA filter, then discharged at a uniform velocity of 0.45 m/s ±20% across the full work area. The cabinet's powder-coated steel outer shell encloses an electropolished SS 304 interior chamber. A magnehelic gauge provides continuous HEPA filter differential pressure indication, alerting users to filter loading before clean room integrity is compromised. VLFCs are available in widths from 900 mm to 2400 mm, all featuring an energy-efficient EC fan motor with variable speed control to compensate for filter loading over its service life. Optional UV sterilisation lamps and internal power sockets are available.
Quality Assurance
Factory tested before dispatch. Each unit ships with a Certificate of Conformance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Air Classification | ISO Class 5 |
| HEPA Filter Grade | H14 (99.995% @ 0.3 µm) |
| Face Velocity | 0.45 m/s ± 20% |
| Available Widths | 900 – 2400 mm |
| Fan Motor | EC Variable Speed |
Skyon Innovation
Cleanroom Engineering Specialists
Skyon Innovation designs, manufactures, and validates cleanrooms, modular OTs, and containment systems across India. Every product is backed by our in-house engineering team and NABL-accredited validation services for regulatory peace of mind.
