Cross-Flow Protection for Sensitive Products

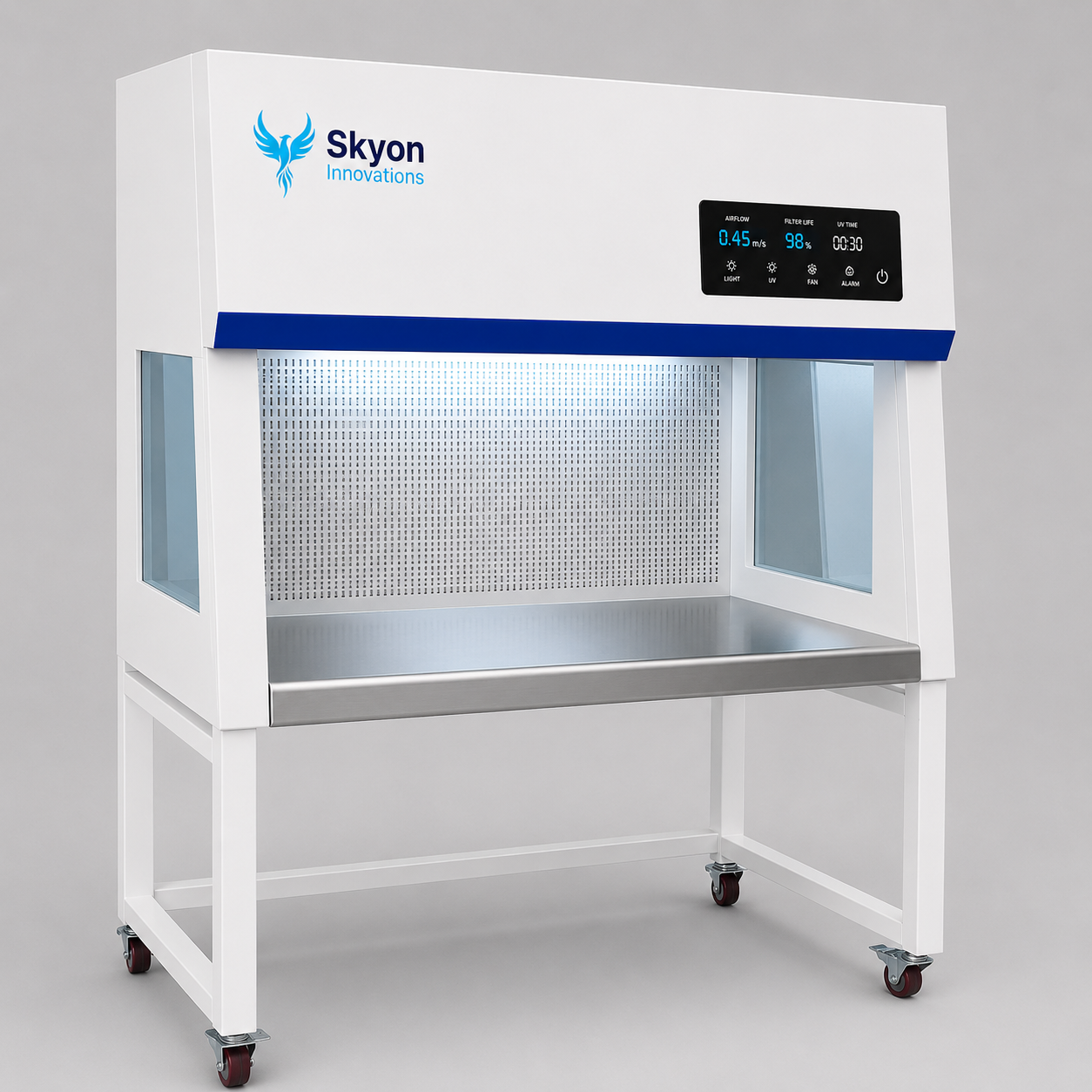

Horizontal Laminar Flow Cabinet
Horizontal laminar flow workstation with uniform air curtain across the work surface for contamination-free processing.
Digital Control & Continuous Monitoring
Airflow Direction
Horizontal (Rear to Front)
HEPA Filter Grade
H14
Product Overview
The Horizontal Laminar Flow Cabinet directs HEPA-filtered clean air horizontally across the work surface towards the operator, creating a positive pressure environment that sweeps particles away from the product. This airflow direction makes the HLFC particularly suited to ophthalmic preparations, sterile media plate pouring, microelectronics assembly, and any process where product protection is paramount and operator exposure to the material is not a concern. The rear-mounted plenum contains a pre-filter for coarse particle removal and an H14 HEPA panel for final filtration. The work surface is a solid 316L stainless steel platform with perforated rear discharge face and side perforated panels to ensure uniform cross-flow. Digital microprocessor control displays fan speed, filter pressure differential, and alarm status on a front-panel LCD. Optional integrated UV lamp, fluorescent or LED work lighting, and side glass panels are available for configurations requiring visibility into the work zone from all angles.
Quality Assurance
Factory tested before dispatch. Each unit ships with a Certificate of Conformance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Airflow Direction | Horizontal (Rear to Front) |
| HEPA Filter Grade | H14 |
| Work Surface | 316L SS Perforated Platform |
| Control | Digital Microprocessor LCD |
| Available Widths | 900 – 1800 mm |
Skyon Innovation
Cleanroom Engineering Specialists
Skyon Innovation designs, manufactures, and validates cleanrooms, modular OTs, and containment systems across India. Every product is backed by our in-house engineering team and NABL-accredited validation services for regulatory peace of mind.
